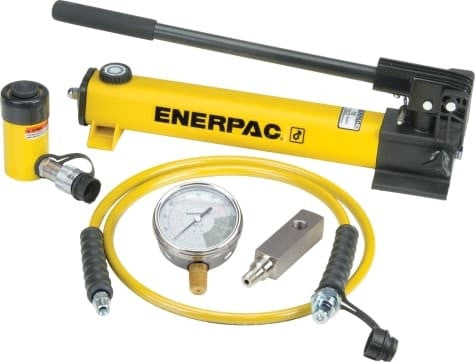

Built around an RC-Series single-acting cylinder, SCR106H Enerpac Hydraulic Cylinder & Hand Pump Set gives the operator 10 Ton capacity and 6.13 in of cylinder movement in a portable manual package.
What Drives the Selection
The 6.13-inch RC-106 sits between Enerpac’s 2.13- and 10.13-inch 10-ton cylinders. That middle position makes it a balanced choice when a short-stroke cylinder is too limiting but the longest version would add unnecessary height and travel.
This version is for users who value portability and direct manual control over cycle speed. No air line or electrical lead is needed to generate hydraulic pressure.
This model is best compared against other SCR sets with the same capacity but different stroke or pump options. The right choice is the one that matches both the mechanical travel and the way hydraulic power will be supplied.
Specifications
| Power Source | Manual |
|---|---|
| Pump Type | Hand Pump |
| Pump Operation | Hand Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 10 Ton |
| Cylinder Type | General Purpose |
| Cylinder Stroke | 6.13 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
