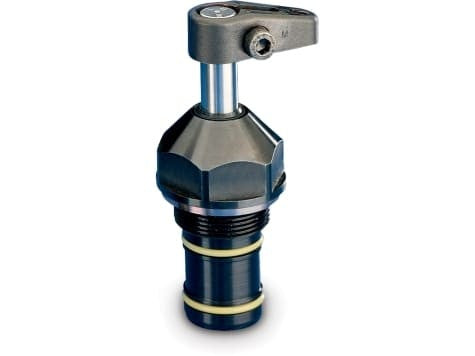

SCRS52 (SCRS-52) 1100 lb. Enerpac Swing Clamp, Cartridge Body, Single Acting
Model : SCRS52 Series : SC Product Lines : Workholding Tools Minimal space required on fixture Can be completely recessed in fixture External plumbing not required Allows close positioning of adjoining units 30, 45 and 60 degree swing angles available on request Enerpac cartridge swing clamps are designed for integrated manifold mounting. This eliminates the need for fittings and tubing on the fixture. Cartridge swing clamps simplify mounting and optimize clamping effectiveness.
Model : SCRS52 Series : SC Product Lines : Workholding Tools Minimal space required on fixture Can be completely recessed in fixture External plumbing not required Allows close positioning of adjoining units 30, 45 and 60 degree swing angles available on request Enerpac cartridge swing clamps are designed for integrated manifold mounting. This eliminates the need for fittings and tubing on the fixture. Cartridge swing clamps simplify mounting and optimize clamping effectiveness.
Specifications
| Product Family | Hydraulic Workholding Cylinders |
|---|---|
| Series | SC |
| Cylinder Type | Hydraulic Swing Clamp Cylinders |
| Stroke | 0.89 in |
| Clamp Force | 1,100 lb |
| Maximum Operating Pressure | 5,000 psi |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Capacity Range | Up to 5 Ton |
| Cylinder Effective Area Clamp | 0.28 sq in |
| Maximum Oil Flow | 25 cu in/min |
| Minimum Operating Pressure | 500 psi |
| Mounting Style | Catridge Model |
| Oil Capacity Clamp | 0.25 cu in |
| Rotation Direction | Right |
| Standard Clamp Arm | CAS52 |
| Stroke Clamping | 0.39 in |
