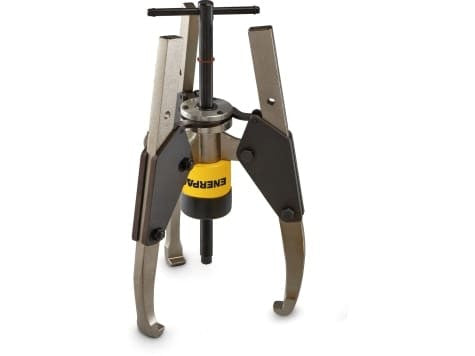

The Enerpac SGH14 is a 14-ton hydraulic Sync-Grip puller. Synchronized jaw movement helps position the jaws around the component being removed.
Key specifications
- Puller capacity: 14 tons
- Operation: hydraulic
- Maximum reach with standard jaws: 12.60"
- Maximum spread with standard jaws: 13.78"
- Cylinder stroke: 1.0"
- Jaw configuration: 2 or 3 jaws
Before ordering
Check shaft access, part diameter, required reach and secure jaw engagement. Optional extended jaws are sold separately. This puller includes its hydraulic cylinder; select a compatible pump, hose and pressure-monitoring arrangement separately.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Type | Sync Grip Puller Hydraulic |
|---|---|
| Load Capacity | 14 Ton |
| Stroke | 1 in |
| Maximum Reach | 12.6 in |
| Maximum Spread | 13.78 in |
| Minimum Spread | 2.36 in |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Hydraulic |
| Capacity Range | 11-25 Ton |
| Jaw Height | 0.49 in |
| Jaw Hole Spacing | 3.27 in |
| Jaw Thickness | 0.98 in |
| Jaw Width | 0.59 in |
| Optional Long Jaw Maximum Reach | 15.75 in |
| Optional Long Jaw Maximum Spread | 15.94 in |
| Weight | 55.1 lb |
