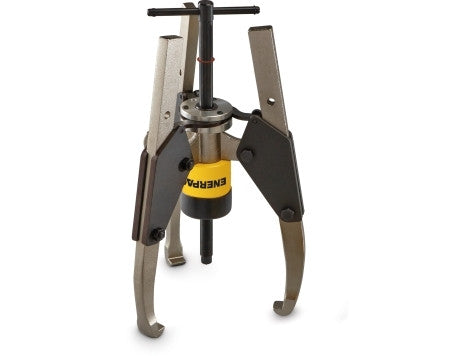

The Enerpac SGH36 is a 36-ton hydraulic Sync-Grip puller. Synchronized jaw movement helps position the jaws around the component being removed.
Key specifications
- Puller capacity: 36 tons
- Operation: hydraulic
- Maximum reach with standard jaws: 16.14"
- Maximum spread with standard jaws: 25.59"
- Cylinder stroke: 2.5"
Before ordering
Check shaft access, part diameter, required reach and secure jaw engagement. Optional extended jaws are sold separately. This puller includes its hydraulic cylinder; select a compatible pump, hose and pressure-monitoring arrangement separately.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Type | Sync Grip Puller Hydraulic |
|---|---|
| Load Capacity | 36 Ton |
| Stroke | 2.5 in |
| Maximum Reach | 16.14 in |
| Maximum Spread | 25.59 in |
| Minimum Spread | 3.94 in |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Hydraulic |
| Capacity Range | 26-50 Ton |
| Jaw Height | 0.87 in |
| Jaw Hole Spacing | 4.92 in |
| Jaw Thickness | 1.61 in |
| Jaw Width | 0.94 in |
| Optional Long Jaw Maximum Reach | 20.67 in |
| Optional Long Jaw Maximum Spread | 28.35 in |
| Weight | 165.3 lb |
