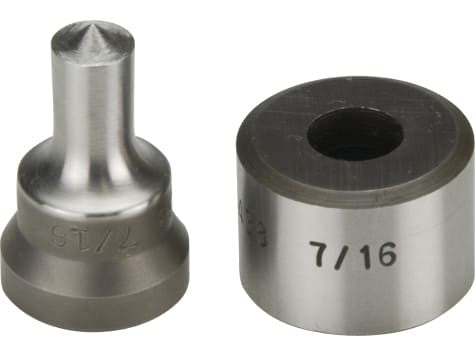

The Enerpac SPD438 is a matched round punch and die set for producing 7/16" holes with a compatible SP35 hydraulic punch.
Key specifications
- Round hole diameter: 7/16"
- Tool compatibility: SP35 hydraulic punch
- Configuration: matched punch and die
Included components
- 7/16" round punch
- Matching 7/16" round-hole die
Before ordering
Verify material grade and thickness against the manufacturer punching limits. Material thickness must not exceed the hole diameter. The hydraulic punch and pump are sold separately.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Type | Punch and Die Set |
|---|---|
| Load Capacity | 35 Ton |
| Capacity Range | 26-50 Ton |
| Hole Shape | Circle |
| Imperial Bolt Size | 3/8" |
| Imperial Hole Size | 0.44 in |
| Max Punch Thickness - Boiler Plate | 0.44 in |
| Max Punch Thickness - Cold Rolled C-1018 | 0.38 in |
| Max Punch Thickness - Corten A242 | 0.38 in |
| Max Punch Thickness - Hot Rolled C-1050 | 0.31 in |
| Max Punch Thickness - Hot Rolled C-1095 | 0.19 in |
| Max Punch Thickness - Hot Rolled C-1095 Annealed | 0.31 in |
| Max Punch Thickness - Mild Steel A7 | 0.44 in |
| Max Punch Thickness - Stainless 304 Hot Rolled | 0.31 in |
| Max Punch Thickness - Stainless 316 Cold Rolled | 0.31 in |
| Max Punch Thickness - Stainless Annealed | 0.31 in |
| Max Punch Thickness - Structural A-36 | 0.38 in |
| Compatible Products | SP35, SP35S, SP35SP, MSP351, MSP351PE, STP35H, STP35A |
| Weight | 0.4 lb |
