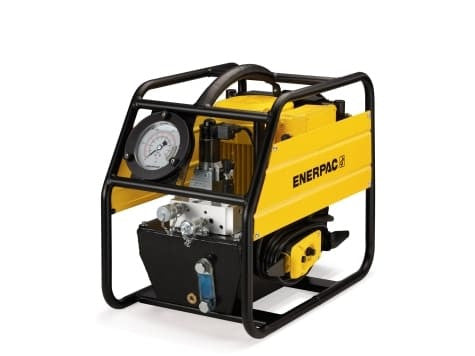

The value of TQ700B is in the exact combination of controls and power it provides. This Enerpac TQ-700 Electric Torque Wrench Pump is built around 115V electrical service. The 115V electrical configuration is one of the model-level choices that must match the available site power.
The closest same-series alternative is TQ700E. The useful difference is that input voltage is 115V on TQ700B versus 230V on TQ700E; frequency is 50/60 Hz on TQ700B versus 50 Hz on TQ700E. Choose between them from the circuit and site requirements rather than from appearance.
How to Choose the TQ700B Version
A 1 hp motor drives the pump, with rated-pressure output specified at 30 in³/min @ 10,000 psi. Remote pendant operation allows the operator to remain closer to the hydraulic work while controlling the pump.
Verify site power against the 115V requirement; a nearby suffix may represent a different electrical version.
Specifications
| Pump Series | TQ-700 Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 30 in³/min @ 10,000 psi |
| Reservoir Capacity | 1.0 gal |
| Usable Oil Capacity | 1.0 gal |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
