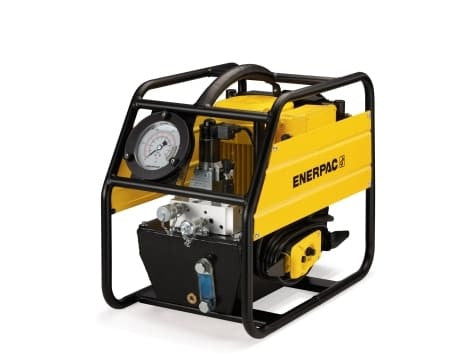

TQ700E is a model-specific Enerpac TQ-700 Electric Torque Wrench Pump choice for 230V electrical service. The 230V electrical configuration is one of the model-level choices that must match the available site power.
The closest same-series alternative is TQ700I. The useful difference is that frequency is 50 Hz on TQ700E versus 60 Hz on TQ700I. Choose between them from the circuit and site requirements rather than from appearance.
Valve, Reservoir and Power Fit for TQ700E
Remote pendant operation allows the operator to remain closer to the hydraulic work while controlling the pump. Its motor package is configured for 230V, single phase, 50 Hz, which is often the deciding factor between closely related model numbers.
Verify site power against the 230V requirement; a nearby suffix may represent a different electrical version.
Specifications
| Pump Series | TQ-700 Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 30 in³/min @ 10,000 psi |
| Reservoir Capacity | 1.0 gal |
| Usable Oil Capacity | 1.0 gal |
| Voltage | 230V |
| Phase | Single Phase |
| Frequency | 50 Hz |
