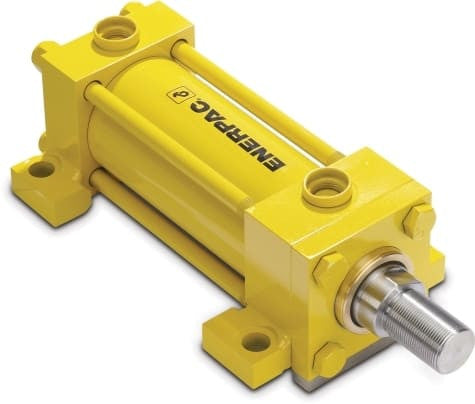

TRFM3206 Enerpac TRFM-3206 Tie Rod Cyl, 3.25" Bore, 6" Stroke, No Cush.
Model : TRFM3206 Series : TR Product Lines : Workholding Tools Foot mount cylinders provide simplest mounting option with just four bolt holes required Standard key mount is included ensuring proper mounting and adding rigidity NFPA style MS2 Compact mounting fits in tight spaces where other cylinders cannot Think Safety Manufacturer's rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings! Pump Selection A double-acting cylinder must be powered by a pump with a 4-way valve.
Model : TRFM3206 Series : TR Product Lines : Workholding Tools Foot mount cylinders provide simplest mounting option with just four bolt holes required Standard key mount is included ensuring proper mounting and adding rigidity NFPA style MS2 Compact mounting fits in tight spaces where other cylinders cannot Think Safety Manufacturer's rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings! Pump Selection A double-acting cylinder must be powered by a pump with a 4-way valve.
Specifications
| Product Family | Hydraulic Workholding Cylinders |
|---|---|
| Series | TR |
| Cylinder Type | Tie Rod Hydraulic Cylinders |
| Push Force | 41,500 lb |
| Pull Force | 25,800 lb |
| Cylinder Stroke | 6.00 in |
