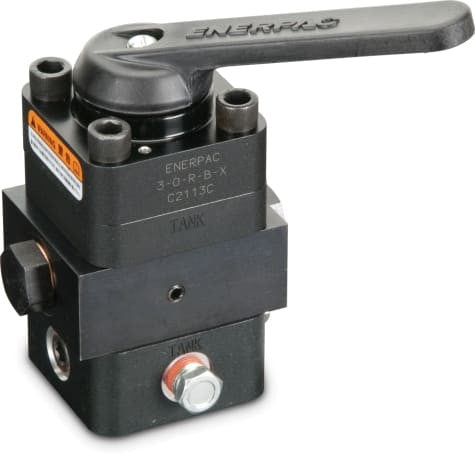

VC3 (VC-3) 3-Way Valve, Remote Mtd.
Model : VC3 Series : VC Product Lines : Industrial Tools, Workholding Tools Advance/Hold/Retract operation for use with single-acting cylinders. For applications that require positive load holding, VC and VM Series valves are available with a pilotoperated check valve. This option provides hydraulic locking of the load until the valve is shifted into the retract position.
Model : VC3 Series : VC Product Lines : Industrial Tools, Workholding Tools Advance/Hold/Retract operation for use with single-acting cylinders. For applications that require positive load holding, VC and VM Series valves are available with a pilotoperated check valve. This option provides hydraulic locking of the load until the valve is shifted into the retract position.
Specifications
| Maximum Operating Pressure | 10,000 psi |
|---|---|
| Valve Operation | Manual |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| Flow Capacity | 4.5 gpm |
| Mounting Location | Remote Mounted |
| Valve Type | 3-Way, 3-Position, Tandem Center |
