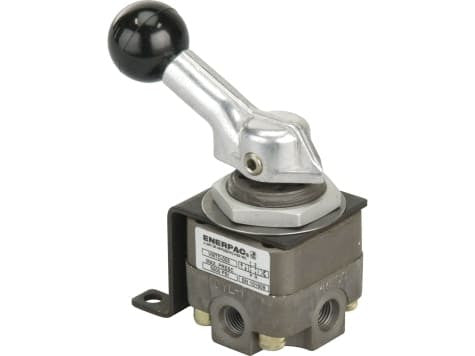

VMTD001 (VMTD-001) 4-Way Valve, SAE, Float Center
Model : VMTD001 Series : VMT Product Lines : Workholding Tools Near zero leakage pressure seal design 4-way, 3-position Detented handle positions Low handle effort 12 lbs, even at full pressure Handle can be repositioned for sideby side valve mounting Compact size for directly mounting on fixture for individual circuit control D03/CETOP 3 mounting pattern Mounting bolts included: #10-24 UN
Model : VMTD001 Series : VMT Product Lines : Workholding Tools Near zero leakage pressure seal design 4-way, 3-position Detented handle positions Low handle effort 12 lbs, even at full pressure Handle can be repositioned for sideby side valve mounting Compact size for directly mounting on fixture for individual circuit control D03/CETOP 3 mounting pattern Mounting bolts included: #10-24 UN
Specifications
| Maximum Operating Pressure | 5,000 psi |
|---|---|
| Valve Operation | Manual |
| Cylinder Compatibility | Single-Acting, Double-Acting |
| Maximum Oil Flow | 1,040 cu in/min |
| Oil Ports | SAE #4 |
| Pressure Range | 0 - 5,000 psi |
