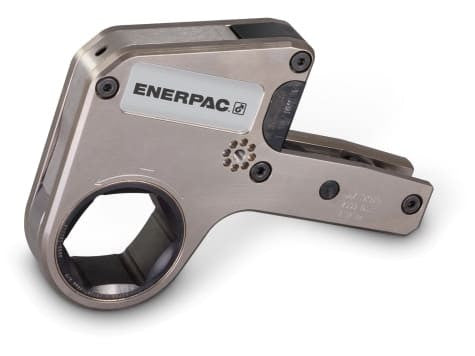

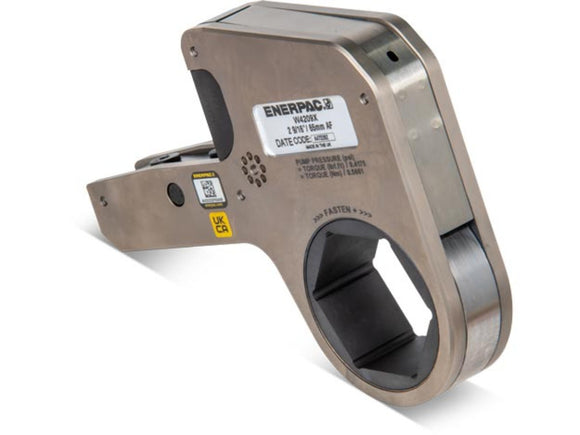

The Enerpac W4209X is a 2-9/16" hexagon cassette for a compatible W-Series hydraulic torque wrench drive unit. The hexagon cassette fits directly around the fastener.
Key specifications
- Hexagon size across flats: 2-9/16"
- Matching drive-unit family: W4000X
- Configuration: cassette; drive unit sold separately
Before ordering
Match the exact fastener across-flats dimension, drive-unit family, torque requirement and surrounding clearance. The drive unit, pump and twin hoses are sold separately. Follow the cassette-specific torque limits.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Type | Cassette - Imperial or Metric |
|---|---|
| Maximum Operating Pressure | 10,000 psi |
| Maximum Torque (ft-lb) | 4,175 |
| AF Size | 2 9/16 in |
| Compatible Drive Units | W4000X |
| Compatible Reducers | W4209R113, W4209R200, W4209R201, W4209R202, W4209R203 |
| Hexagon Size (S) | 2 9/16 in |
| Minimum Torque | 418 ft-lb |
| Nominal Torque | 4,175 ft-lb |
| Nose Radius (H) | 1.95 in |
| Compatible Products | W4000x, W4209R113, W4209R200, W4209R201, W4209R202, W4209R203 |
| Weight | 8.67 lb |
