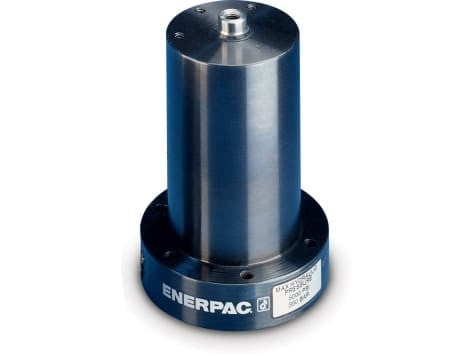

The Enerpac WPFC210V is a Collet-Lok positive-locking push cylinder. Hydraulic pressure extends the plunger to the part, then a collet is driven up a wedge and locks the plunger mechanically, holding up to 5,000 lb without live hydraulic pressure. It is used as a locking work support or push clamp where the fixture will be disconnected from the power source.
Features
- Mechanical collet lock holds position without pressure
- Lower flange body
- Viton seals standard
Sizing
Stroke is 0.60 in; effective area 0.99 in² and 0.61 in³ of oil to advance. Operating range is 725-5,000 psi; maximum flow 600 in³/min. Length is 6.20 in retracted and 6.80 in extended.
Before you order: Follow Enerpac's Collet-Lok lock/unlock sequence and valving; capacities up to 8,800 lb are available on request from Enerpac.
Related models
| Model | Force | Mounting |
|---|---|---|
| WPTC110V | 2,500 lb | Threaded body |
| WPTC210V | 5,000 lb | Threaded body |
Specifications
| Product Family | Hydraulic Workholding Cylinders |
|---|---|
| Series | WPFC |
| Cylinder Type | Specialty Workholding Cylinders |
| Stroke | 0.60 in |
| Push Force | 5,000 lb |
| Cylinder Stroke | 0.60 in |
| Maximum Operating Pressure | 5,000 psi |
| Capacity Range | Up to 5 Ton |
