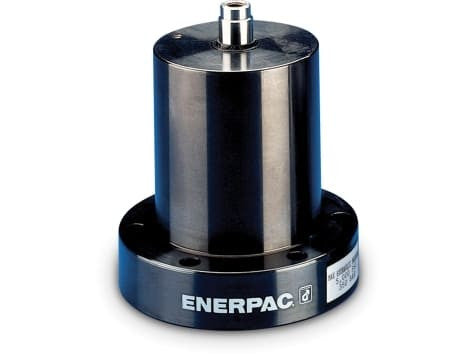

Introducing the WPFS100V Collet-Lok Work Support, Flange Body. This work support provides superior durability and superior performance. It comes with a safety factor of 3, making it ideal for heavy-duty applications. It features a unique design that allows for quick and easy installation. Plus, the built-in Collet-Lok system ensures that your workpiece is securely locked into place for optimal safety. Get your WPFS100V Collet-Lok Work Support, Flange Body today and enjoy superior durability and performance. Order online or call (704) 463-1070 with questions.
Specifications
| Product Family | Hydraulic Workholding Supports |
|---|---|
| Series | WPFS |
| Cylinder Type | Collet-Lok Work Supports |
| Stroke | 0.39 in |
| Maximum Operating Pressure | 5,000 psi |
| Locking System Displacement Lock | 0.24 cu in/min |
| Locking System Displacement Unlock | 0.24 cu in/min |
| Maximum Oil Flow | 30 cu in/min |
| Maximum Support Force | 2,000 lb |
| Minimum Operating Pressure | 1,450 psi |
| Mounting Style | Flange Model |
| Plunger Contact Spring Force Advance | 4.5 lb |
