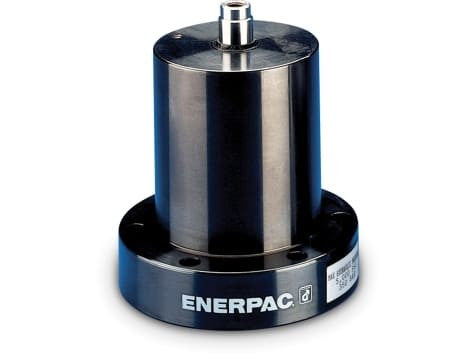

The WPFS200V Collet-Lok Work Support, Flange Body is a reliable and efficient solution for any industrial environment. With its unique design, it offers superior grip and stability while providing an easy installation process. Its superior strength makes it perfect for heavy-duty applications and its lightweight construction makes it easy to maneuver. Buy online today or call (704) 463-1070 with any questions!
Specifications
| Product Family | Hydraulic Workholding Supports |
|---|---|
| Series | WPFS |
| Cylinder Type | Collet-Lok Work Supports |
| Stroke | 0.39 in |
| Maximum Operating Pressure | 5,000 psi |
| Locking System Displacement Lock | 0.37 cu in/min |
| Locking System Displacement Unlock | 0.37 cu in/min |
| Maximum Oil Flow | 60 cu in/min |
| Maximum Support Force | 4,000 lb |
| Minimum Operating Pressure | 1,450 psi |
| Mounting Style | Flange Model |
| Plunger Contact Spring Force Advance | 7.9 lb |
