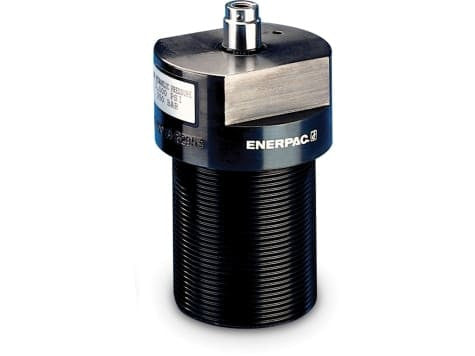

The WPTS200V Collet-Lok Work Support is the perfect choice for any construction project. Its threaded body provides stability and security, while its easy-to-use design makes it simple to set up and use. The Collet-Lok Work Support is durable and reliable, ready to handle tough jobs. Buy online or call (704) 463-1070 with any questions. Make sure you have the best tools for the job with the WPTS200V Collet-Lok Work Support!
Specifications
| Product Family | Hydraulic Workholding Supports |
|---|---|
| Series | WPTS |
| Cylinder Type | Collet-Lok Work Supports |
| Stroke | 0.39 in |
| Maximum Operating Pressure | 5,000 psi |
| Locking System Displacement Lock | 0.37 cu in/min |
| Locking System Displacement Unlock | 0.37 cu in/min |
| Maximum Oil Flow | 60 cu in/min |
| Maximum Support Force | 4,000 lb |
| Minimum Operating Pressure | 1,450 psi |
| Mounting Style | Threaded Body |
| Plunger Contact Spring Force Advance | 6.74 lb |
