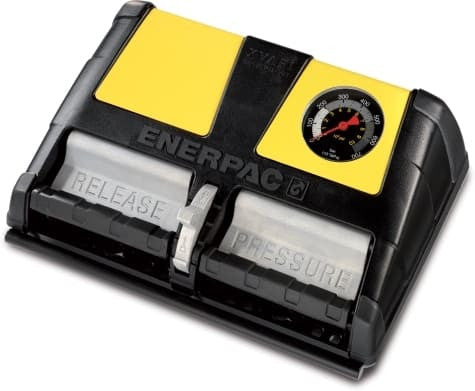

XA11G Enerpac XA Air Hydraulic Foot Pump is the gauge-equipped single-acting version of the XA family. It uses a 3-way valve and includes direct pressure monitoring at the pump.
Single-Acting Foot Control With Pressure Feedback
The integrated gauge is useful when the operator needs to observe hydraulic pressure while controlling cylinder movement with the foot pedal. For the same single-acting function without the gauge, XA11 is the simpler alternative.
XVARI variable-flow control lets pedal input meter oil delivery for finer positioning. The 61 in³ bladder reservoir creates a closed hydraulic system that can operate in different orientations and helps reduce contamination exposure.
Specifications
| Pump Series | XA Series |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 15 in³/min @ 10,000 psi |
| Reservoir Capacity | 61 in³ |
| Pump Operation | Foot Operated |
| Valve Configuration | 3-Way, 3-Position |
| Valve Operation | Foot Pedal |
| Cylinder Compatibility | Single-Acting |
| Air Pressure Range | 30–125 psi |
| Air Consumption | 10–35 scfm |
| Gauge Included | Yes |
