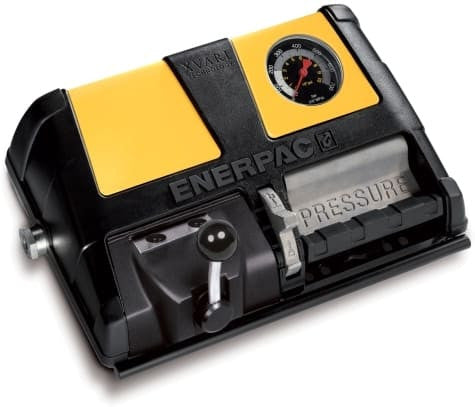

XA11VG Enerpac XA Air Hydraulic Foot Pump combines double-acting cylinder control with an integrated pressure gauge. The V identifies the double-acting valve configuration; the G version adds direct pressure visibility at the pump.
Double-Acting XA Control With a Built-In Gauge
A 4-way valve provides advance, hold and retract for cylinders that must be powered in both directions. The foot pedal uses Enerpac XVARI technology to vary oil flow, giving the operator finer control over movement while keeping both hands available.
The closed 61 in³ hydraulic system uses a bladder reservoir to help keep contamination out and allow operation in different positions. If a gauge is not required, XA11V provides the same double-acting concept without the integrated gauge.
Specifications
| Series | XA |
|---|---|
| Pump Series | XA Series |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 15 in³/min @ 10,000 psi |
| Pump Operation | Foot Operated |
| Reservoir Capacity | 61 in³ |
| Sealed Reservoir | Yes |
| Valve Configuration | 4-Way, 3-Position |
| Valve Operation | Foot Pedal |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Double-Acting |
| Air Consumption | 10–35 scfm |
| Air Pressure Range | 30–125 psi |
| Gauge Included | Yes |
