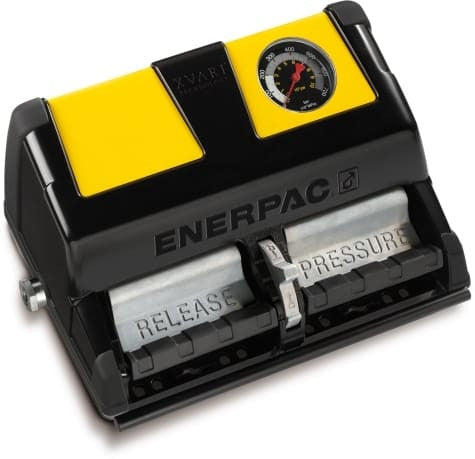

Pump, Air Driven, D/A, 2 L, Gauge
Model : XA12VG Series : XA Product Lines : Industrial Tools Higher oil flow for increased productivity Variable oil flow and fine metering for precise control Closed hydraulic system prevents contamination and allows pump usage in any position Pedal lock function for retract position External adjustable pressure setting valve ATEX Certified.* Includes ground screw for explosion protection
Model : XA12VG Series : XA Product Lines : Industrial Tools Higher oil flow for increased productivity Variable oil flow and fine metering for precise control Closed hydraulic system prevents contamination and allows pump usage in any position Pedal lock function for retract position External adjustable pressure setting valve ATEX Certified.* Includes ground screw for explosion protection
Specifications
| Product Family | Hydraulic Pressure Gauges |
|---|---|
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Compressed Air |
| Reservoir Capacity | 122 cu in |
| Usable Oil Capacity | 122 cu in |
| Valve Operation | Manual |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Double-Acting |
| Air Consumption | 10 - 35 scfm |
| Air Pressure Range | 30 - 125 psi |
| Maximum Flow at Rated Pressure | 15 cu in/min |
| Output Flow Rate Load | 15 cu in/min |
| Output Flow Rate No Load | 120 cu in/min |
| Valve Type | 4-way, 3-position |
| Weight | 26.2 lb |
