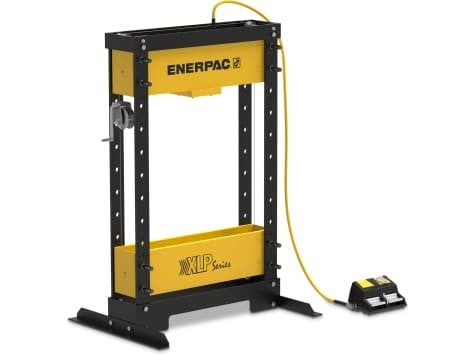

Press, Xlp 50 Ton, Rc506 With Xa12G
Model : XLP506XA12GU Series : XLP Product Lines : Industrial Tools The XLP506XA12GU offers an exceptional value with features including adjustable lower and upper bolsters, a horizontally adjustable RC-Cylinder, and a high-speed foot-activated pneumatic-pump. These presses come standard as unassembled kits which include the frame, winch, cylinder, pump, gauge, couplers and hose. For premium performance in more demanding applications, Enerpac also offers the IP Press Series, which features heavy duty welded frames and a broad range of cylinder and pump options. Cut-away in lower frame for pallet truck access allows easy transportation Easy height adjustment with integrated winch mechanism Horizontal cylinder adjustment enables flexible load placement
Model : XLP506XA12GU Series : XLP Product Lines : Industrial Tools The XLP506XA12GU offers an exceptional value with features including adjustable lower and upper bolsters, a horizontally adjustable RC-Cylinder, and a high-speed foot-activated pneumatic-pump. These presses come standard as unassembled kits which include the frame, winch, cylinder, pump, gauge, couplers and hose. For premium performance in more demanding applications, Enerpac also offers the IP Press Series, which features heavy duty welded frames and a broad range of cylinder and pump options. Cut-away in lower frame for pallet truck access allows easy transportation Easy height adjustment with integrated winch mechanism Horizontal cylinder adjustment enables flexible load placement
Specifications
| Pump Model | XA12G |
|---|---|
| Load Capacity | 50 Ton |
| Cylinder Stroke | 6.25 in |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Compressed Air |
| Capacity Range | 26-50 Ton |
| Maximum Bed Width | 38.98 in |
| Maximum Vertical Daylight | 37.8 in |
| Power Source Valve | Manual |
| Pressing Speed | 0.02 in/sec |
| Rapid Advance Speed | 0.18 in/sec |
