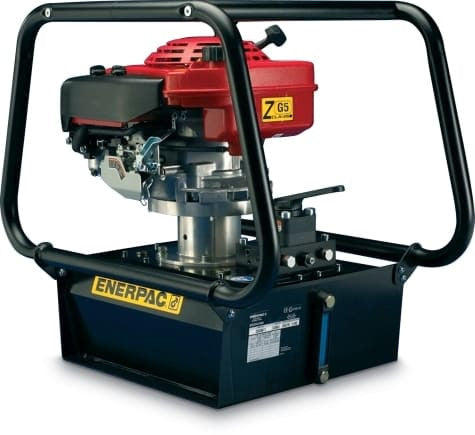

ZG5310MX-R Enerpac Gas Hydraulic Pump is the smaller-reservoir single-acting configuration in the ZG5 gasoline-powered pump family. It combines a Honda 4-cycle engine with Enerpac's Z-Class pump design, giving crews a self-contained hydraulic power source for jobs where electrical service is unavailable or impractical.
Built Around Single-Acting Hydraulic Work
The VM33 manual valve is configured for advance, hold and retract operation with single-acting cylinders and tools. That makes ZG5310MX-R a better fit than the VM43-equipped ZG54 models when the hydraulic circuit does not require powered return in both directions.
This model uses the 10-liter reservoir, so it keeps the package more compact than the 20-liter ZG5320MX-R while retaining the same ZG5 high-pressure performance. Enerpac's two-speed design moves oil faster at lower pressure and transitions for high-pressure work, helping reduce cycle time compared with a single-speed pump.
A full-sight oil-level glass simplifies fluid checks, and the roll cage gives the gasoline pump added protection and handling capability for field use. For a single-acting application that needs more available oil volume, compare the otherwise similar ZG5320MX-R.
Specifications
| Series | ZG5 |
|---|---|
| Pump Series | ZG5 Series |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Gasoline |
| Rated Oil Flow | 100 in³/min @ 10,000 psi |
| Oil Flow - Max Pressure | 100 in³/min @ 10,000 psi |
| Pump Speed | Two-Speed |
| Reservoir Capacity | 578 in³ (10 L) |
| Usable Oil Capacity | 2.5 gal (10 L) |
| Valve Configuration | 3-Way, 3-Position Manual |
| Valve Operation | Manual |
| Control Type | Manual |
| Cylinder Compatibility | Single-Acting |
