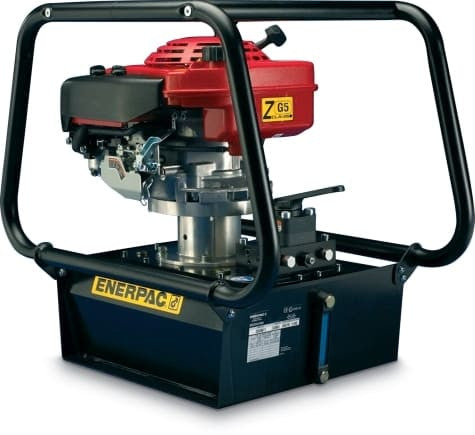

ZG5320MX-R Enerpac Gas Hydraulic Pump pairs the ZG5 gasoline power unit with a 20-liter reservoir and a VM33 manual valve for single-acting hydraulic cylinders and tools. The larger oil supply is the main reason to choose this model over the ZG5310MX-R when the connected cylinder or system requires more fluid volume.
More Oil Capacity for Single-Acting Systems
Because the valve is designed around single-acting operation, the pump is well suited to lifting, pressing, positioning and other applications where hydraulic pressure advances the cylinder and return is handled by the cylinder's return mechanism. The manual valve lets the operator advance, hold or retract the hydraulic circuit directly at the power unit.
The ZG5 platform uses Enerpac's two-speed Z-Class pump design to combine rapid movement at lower pressure with high-pressure capability as the load increases. A Honda 4-cycle gasoline engine keeps the unit independent of an electrical power source, which is particularly useful for outdoor, construction and remote maintenance work.
ZG5320MX-R also includes the full-sight reservoir level glass and protective roll cage used on the ZG5 roll-cage configurations. If the application uses a double-acting cylinder instead, the corresponding ZG54 models use a 4-way valve arrangement.
Specifications
| Series | ZG5 |
|---|---|
| Pump Series | ZG5 Series |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Gasoline |
| Rated Oil Flow | 100 in³/min @ 10,000 psi |
| Oil Flow - Max Pressure | 100 in³/min @ 10,000 psi |
| Pump Speed | Two-Speed |
| Reservoir Capacity | 1,155 in³ (20 L) |
| Usable Oil Capacity | 5.0 gal (20 L) |
| Valve Configuration | 3-Way, 3-Position Manual |
| Valve Operation | Manual |
| Control Type | Manual |
| Cylinder Compatibility | Single-Acting |
