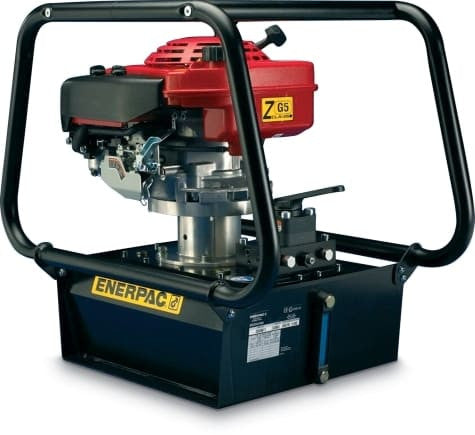

ZG5410MX-R Enerpac Gas Hydraulic Pump is a compact ZG5 configuration for double-acting cylinders and hydraulic tools. Its VM43 manual valve provides the directional control required to hydraulically power both advance and return, while the 10-liter reservoir keeps the package smaller than the 20-liter ZG5420MX-R.
Compact Gasoline Power for Double-Acting Cylinders
This model is useful where a double-acting hydraulic circuit is required but a larger reservoir would add unnecessary size and oil volume. The Honda-powered ZG5 platform can be taken to work areas where AC power is not readily available, providing a standalone hydraulic source for field service, fabrication, construction and maintenance applications.
Enerpac's Z-Class pump element uses two-speed operation to shorten no-load and low-pressure travel before delivering high-pressure output under load. The manual 4-way valve gives the operator direct advance, hold and retract control of compatible double-acting equipment.
The roll cage helps protect the power unit during transport and jobsite use, while the full-sight oil-level glass makes reservoir checks quick. For the same double-acting valve arrangement with twice the nominal reservoir volume, ZG5420MX-R is the larger-capacity alternative.
Specifications
| Series | ZG5 |
|---|---|
| Pump Series | ZG5 Series |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Gasoline |
| Rated Oil Flow | 100 in³/min @ 10,000 psi |
| Oil Flow - Max Pressure | 100 in³/min @ 10,000 psi |
| Pump Speed | Two-Speed |
| Reservoir Capacity | 578 in³ (10 L) |
| Usable Oil Capacity | 2.5 gal (10 L) |
| Valve Configuration | 4-Way, 3-Position Manual |
| Valve Operation | Manual |
| Control Type | Manual |
| Cylinder Compatibility | Double-Acting |
