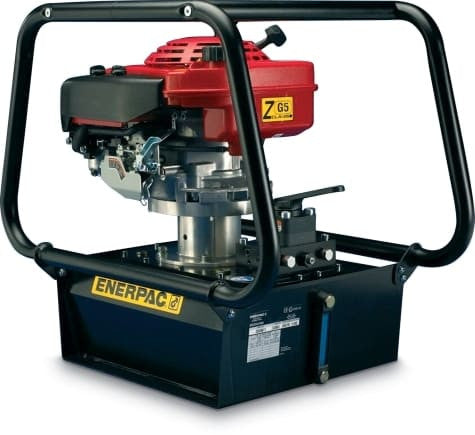

ZG5420MX-R Enerpac Gas Hydraulic Pump combines the double-acting VM43 valve configuration with the larger 20-liter ZG5 reservoir. It is intended for hydraulic systems that need powered advance and return together with more available oil volume than the compact ZG5410MX-R provides.
Double-Acting Control with the Larger ZG5 Reservoir
The extra reservoir capacity can matter when operating larger cylinders, longer-stroke equipment or hydraulic circuits with greater oil demand. The 4-way, 3-position manual valve gives the operator positive directional control of double-acting cylinders while retaining a hold position between movements.
A Honda 4-cycle gasoline engine makes the pump independent of site electrical power. Enerpac pairs that engine with its two-speed Z-Class pump design so the system can move oil rapidly during lower-pressure travel and then supply high-pressure hydraulic force as resistance increases.
The roll-cage configuration is suited to portable field use, and the full-sight level glass makes it easier to confirm reservoir oil level before operation. Buyers who need the same double-acting arrangement but less oil capacity can step down to ZG5410MX-R; applications requiring substantially greater flow and reservoir volume move into the ZG6 class.
Specifications
| Series | ZG5 |
|---|---|
| Pump Series | ZG5 Series |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Gasoline |
| Rated Oil Flow | 100 in³/min @ 10,000 psi |
| Oil Flow - Max Pressure | 100 in³/min @ 10,000 psi |
| Pump Speed | Two-Speed |
| Reservoir Capacity | 1,155 in³ (20 L) |
| Usable Oil Capacity | 5.0 gal (20 L) |
| Valve Configuration | 4-Way, 3-Position Manual |
| Valve Operation | Manual |
| Control Type | Manual |
| Cylinder Compatibility | Double-Acting |
