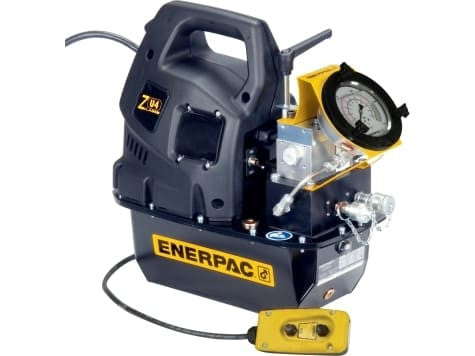

The selection case for ZU4204BBQH starts with solenoid valve control. This Enerpac ZU4 Hydraulic Torque Wrench Pump is one specific hydraulic and electrical arrangement within the broader family. The 1.0 gal reservoir is at the smaller end of this series, which can reduce unnecessary oil volume when the connected circuit does not require one of the larger reservoir options.
Understanding the ZU4204BBQH Arrangement
Pendant control lets the operator command the pump without standing at the valve body. The single-solenoid torque wrench valve provides advance / retract hydraulic control.
Verify site power against the 115V requirement; a nearby suffix may represent a different electrical version.
The adjacent model ZU4204BIQH helps clarify the choice. input voltage is 115V on ZU4204BBQH versus 208-240V on ZU4204BIQH; that is the key separation between these two otherwise related pumps.
Specifications
| Pump Series | ZU4 Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 60 in³/min @ 10,000 psi |
| Reservoir Capacity | 1.0 gal |
| Usable Oil Capacity | 1.0 gal |
| Valve Model | VE42Q |
| Valve Configuration | Single-solenoid torque wrench valve |
| Valve Operation | Solenoid |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
