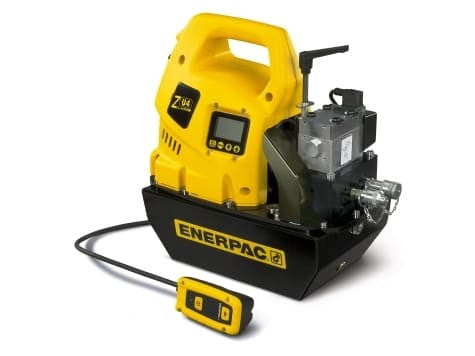

ZU4204TBQ Pro Electric Torque Wrench Pump, LCD Display, 1.0 gal, 115V

The Enerpac ZU4204TBQ is an electric torque wrench pump with 1.0 gal usable oil capacity and torque wrench valve control.

Key specifications

• Maximum operating pressure: 10,000 psi
• Oil capacity: 1.0 gal usable
• Valve: torque wrench valve
• Application: hydraulic torque wrenches
• Power supply: 115 VAC, single-phase
• Control configuration: solenoid valve with pendant, LCD and pressure transducer

Before ordering

Confirm the tool pressure rating, required oil volume, valve operation and hose connections before ordering. Verify the available 115V electrical supply. Match the pump and twin hose configuration to the torque wrench.

Pump service parts and equipment

• DC9656259 replacement motor brush — Verified for ZU4 Pro torque wrench pumps with date code beginning E. The motor uses two brushes; confirm the sales pack quantity and installed motor before ordering.
• DC9551920 replacement reservoir gasket — Verified for ZU4 Pro torque wrench pumps with date code beginning E. Confirm the original gasket and reservoir arrangement; DC9551920SR is a different part number.
• DC8244259SR complete 115V motor assembly — Verified motor assembly for the 115V configuration of ZU4 Pro torque wrench pumps with date code beginning E. Match the original motor assembly; this is not the 230V replacement.

Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
