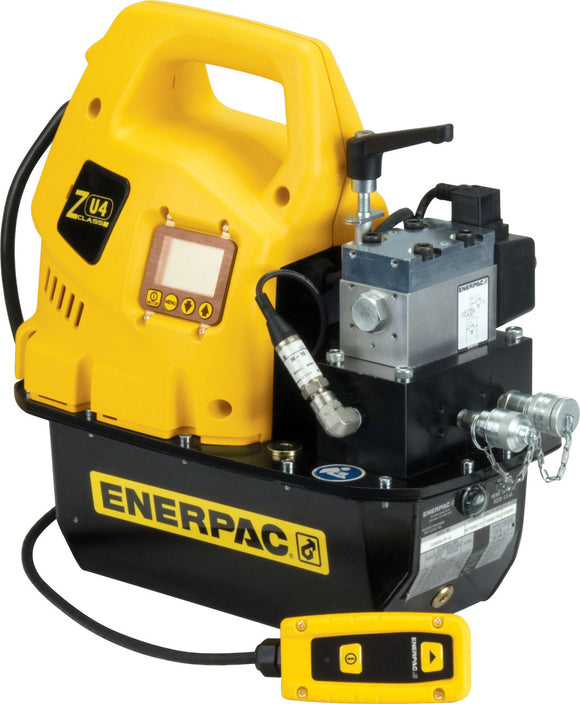

ZU4208TBQ is a model-specific Enerpac ZU4 Hydraulic Torque Wrench Pump choice for LCD-equipped remote control. The 1.75 gal reservoir sits between the smallest and largest capacities offered in this group, making oil-volume demand an important comparison point.
For cycle planning, the key output figure is 60 in³/min @ 10,000 psi; the motor size is 1.7 hp. The pendant moves pump control away from the power unit, which is useful when the operator needs to watch the tool or cylinder. Its LCD-equipped controls provide operating and diagnostic readouts at the pump.
Why ZU4208TBQ Is Its Own Configuration
Verify site power against the 115V requirement; a nearby suffix may represent a different electrical version.
If the shortlist includes ZU4204TBQ, focus on the configuration change: reservoir capacity is 1.75 gal on ZU4208TBQ versus 1.0 gal on ZU4204TBQ; usable oil capacity is 1.75 gal on ZU4208TBQ versus 1.0 gal on ZU4204TBQ. The remaining shared family characteristics should not obscure that difference.
The single-solenoid torque wrench valve provides advance / retract hydraulic control.
Specifications
| Pump Series | ZU4 Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 60 in³/min @ 10,000 psi |
| Reservoir Capacity | 1.75 gal |
| Usable Oil Capacity | 1.75 gal |
| Valve Model | VE42TQ |
| Valve Configuration | Single-solenoid torque wrench valve |
| Valve Operation | Solenoid |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
