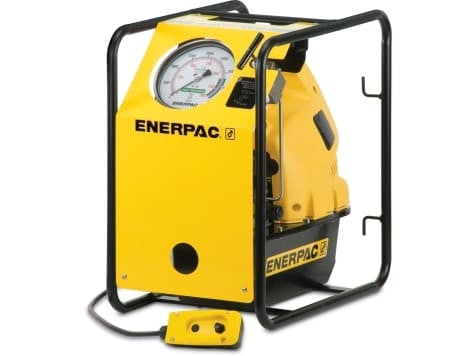

The Enerpac ZUTP1500B is a electric tensioning pump with 1.0 gal usable oil capacity and manual control.
Key specifications
- Maximum operating pressure: 21,750 psi
- Oil capacity: 1.0 gal usable
- Valve: manual
- Application: hydraulic bolt tensioning
- Power supply: 115 VAC, single-phase
- Pump operation: two-speed
Before ordering
Confirm the tool pressure rating, required oil volume, valve operation and hose connections before ordering. Verify the available 115V electrical supply. Use only compatible ultra-high-pressure tensioning tools, hoses and couplers.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Pump Series | ZUTP Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 21,750 psi |
| Rated Oil Flow | 20 in³/min @ 21,750 psi |
| Reservoir Capacity | 1.0 gal |
| Valve Configuration | Manual tensioning valve |
| Valve Operation | Manual |
| Voltage | 115V |
| Phase | Single Phase |
