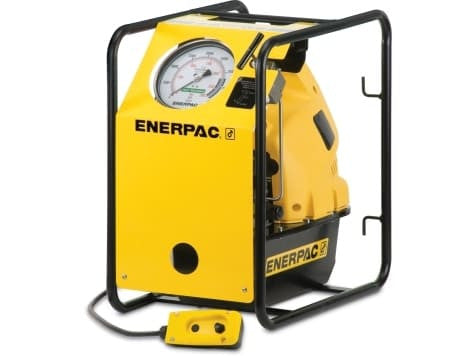

ZUTP1500I occupies a distinct point in the Enerpac ZUTP Electric Tensioning Pump family because of its manual valve control configuration. The 230V electrical configuration is one of the model-level choices that must match the available site power.
The electrical requirement is 230V, single phase, so site power should be confirmed before the pump is specified. Available oil volume is set by the 1.0 gal reservoir, so the connected equipment’s oil requirement should be verified before final selection.
Model selection becomes clearer against ZUTP1500B. In that comparison, input voltage is 230V on ZUTP1500I versus 115V on ZUTP1500B.
Check the hydraulic system's total oil demand against the 1.0 gal reservoir before final selection.
Specifications
| Series | ZUTP |
|---|---|
| Pump Series | ZUTP Series |
| Maximum Operating Pressure | 21,750 psi |
| Power Source | Electric |
| Motor Power | 1.7 hp |
| Voltage | 230V |
| Phase | Single Phase |
| Rated Oil Flow | 20 in³/min @ 21,750 psi |
| Reservoir Capacity | 1.0 gal |
| Valve Configuration | Manual Tensioning Valve |
| Valve Operation | Manual |
