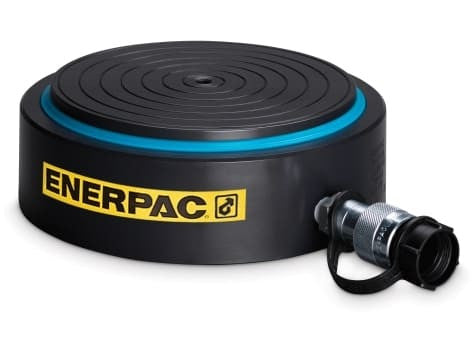

CUSP200 Enerpac 200 Ton Ultra-Flat Cylinder with Tilting Function, 0.59 in Stroke, 2.72 in Collapsed Height

The Enerpac CUSP200 is a 200-ton class ultra-flat, single-acting, load-return cylinder from the CUSP-Series, with a maximum capacity of 235.0 tons at 10,150 psi and a collapsed height of just 2.72 in. Its integrated tilting function (up to ±3°) evens out the load when the lifting surface is not perfectly parallel, so it fits into tight gaps for machinery lifting, leveling and structural jacking.

Features

• Up to 4% side-load of maximum capacity
• Extremely low collapsed height
• Integrated tilting function up to ±3° to distribute the load evenly
• Nitrocarburized surface treatment for harsh conditions
• "Red Line" for visual maximum stroke indication
• CR400 coupler with dust cap

Sizing

Stroke is 0.59 in straight and 0.39 in when tilted. Effective area is 46.28 in² and a full stroke needs 27.15 in³ of oil. The CUSP200 is 2.72 in collapsed, 3.30 in extended, 9.02 in outside diameter and weighs 47.4 lb.

How it compares

Nearby capacities in the CUSP range: CUSP100 (100 ton, 2.50 in collapsed), CUSP150 (150 ton, 2.56 in collapsed), CUSP250 (250 ton, 2.85 in collapsed), CUSP300 (300 ton, 2.85 in collapsed).

Before you order: CUSP cylinders do not have a stop-ring for stroke limitation; ultra-flat cylinders need a solid lifting surface, as use on sand, mud or dirt can damage the cylinder; use an HC-Series hose with CH604 coupler to connect to your pump.
