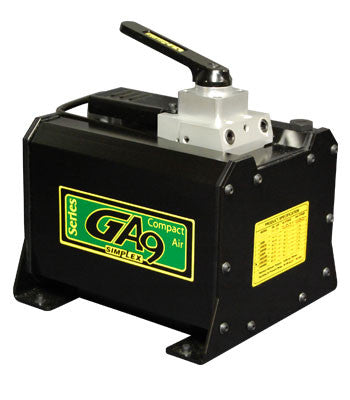

GA9230D Air Over Hydraulic Compact Foot Pump, Valve Control, 11 in3/Min 180 Cm3/Min Oil Flow At 10,000 psi, 230 in3 Usable Oil Capacity, for Use with Double-Acting Tools

The Simplex GA9230D is an air-over-hydraulic foot pump. Simplex lists it as: Air Over Hydraulic Compact Foot Pump, Valve Control, 11 in3/min (180 cm3/min) Oil Flow at 10,000 psi, 230 in3 Usable Oil Capacity, For use with Double-Acting Tools. It is a compact Simplex air-over-hydraulic foot pump that runs on shop air and leaves both hands free.

What the GA9230D configuration means

• Valve: It is set up for double-acting cylinders and tools.
• Power: It runs on shop air (60 - 150 psi), so no electrical supply is needed at the work.
• Oil capacity: It holds 230 cu in of usable oil. To check it is enough, add up the oil capacity of every cylinder on the circuit (listed on each cylinder page) and keep the total under 230 cu in.
• Speed: At full pressure (10,000 psi) it delivers 11 cu in/min, so every 10 cu in of cylinder oil takes about 55 seconds under full load. With little load it moves 68 cu in/min, about 9 seconds per 10 cu in.
• Duty: Sound level is 85 dBA.

Similar models

• GA9230: same pump with a valve for single-acting tools
• GA9460D: same pump with 460 cu in of usable oil

What to pair it with

double-acting cylinders; hydraulic hoses; pressure gauges. Not sure what fits? Call (704) 463-1070 with your cylinder or wrench model numbers and we will put the system together with you.

Frequently asked questions

Will the GA9230D run double-acting cylinders?
Yes. It is set up for double-acting cylinders and tools.

What power does the GA9230D need?
It runs on shop air (60 - 150 psi), so no electrical supply is needed at the work.

Is the GA9230D a genuine Simplex product?
Yes. BuyEnerpac.com is an authorized Enerpac distributor and sells genuine Simplex products.
