GA9230 Air Over Hydraulic Compact Foot Pump, Foot Pedal Control, 11 in3/Min 180 Cm3/Min Oil Flow At 10,000 psi, 230 in3 Usable Oil Capacity, for Use with Single-Acting Tools

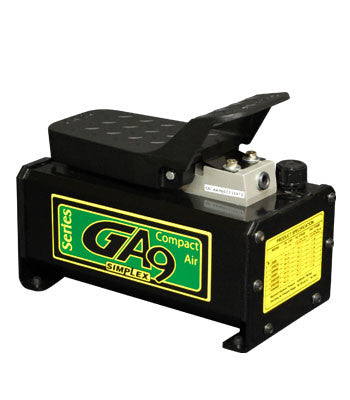

The Simplex GA9230 is an air-over-hydraulic foot pump. Simplex lists it as: Air Over Hydraulic Compact Foot Pump, Foot Pedal Control, 11 in3/min (180 cm3/min) Oil Flow at 10,000 psi, 230 in3 Usable Oil Capacity, For use with Single-Acting Tools. It is a compact Simplex air-over-hydraulic foot pump that runs on shop air and leaves both hands free.

What the GA9230 configuration means

• Valve: It is set up for single-acting cylinders and tools.
• Power: It runs on shop air (60 - 150 psi), so no electrical supply is needed at the work.
• Oil capacity: It holds 230 cu in of usable oil. To check it is enough, add up the oil capacity of every cylinder on the circuit (listed on each cylinder page) and keep the total under 230 cu in.
• Speed: At full pressure (10,000 psi) it delivers 11 cu in/min, so every 10 cu in of cylinder oil takes about 55 seconds under full load. With little load it moves 68 cu in/min, about 9 seconds per 10 cu in.
• Duty: Sound level is 85 dBA.

Similar models

• GA9230D: same pump with a valve for double-acting tools
• GA90: same pump with 90 cu in of usable oil
• GA9230R: same pump with with a pendant

What to pair it with

single-acting cylinders; hydraulic hoses; pressure gauges. Not sure what fits? Call (704) 463-1070 with your cylinder or wrench model numbers and we will put the system together with you.

Frequently asked questions

Will the GA9230 run double-acting cylinders?
No. It is set up for single-acting cylinders and tools.

What power does the GA9230 need?
It runs on shop air (60 - 150 psi), so no electrical supply is needed at the work.

Is the GA9230 a genuine Simplex product?
Yes. BuyEnerpac.com is an authorized Enerpac distributor and sells genuine Simplex products.

This item typically ships within 2-3 days.
