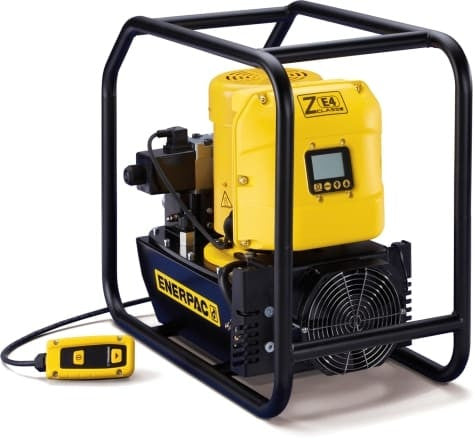

ZE4204TB-QHR Enerpac Electric Torque Wrench Pump, VE42TQ, LCD, 1.0 gal, 115V, Coupler, Heat Exchanger, Roll Cage

The Enerpac ZE4204TB-QHR is a ZE4T-Series electric torque wrench pump for driving Enerpac S-, W- and RSL-Series hydraulic torque wrenches at up to 10,000 psi. It uses a 24 VDC solenoid torque wrench valve with a pendant, LCD electrics and a pressure transducer, and is built for 115V single-phase power. It comes factory-fitted with a 10,000 psi coupler for S-, W- and RSL-Series wrenches, a heat exchanger and a roll cage.

Sizing

The ZE4T is a two-stage pump: about 650 in³/min at 100 psi and 600 in³/min at 700 psi to run the wrench up quickly, then 60 in³/min at 10,000 psi under full load. The 1.5 hp motor drives a relief valve adjustable from 1,000 to 11,600 psi. The 1.0 gal reservoir holds about 231 in³ of usable oil. Flow figures are at 60 Hz; on 50 Hz power expect about 5/6 of these values.

Before you order: Confirm the wrench series (S, W or RSL) and the torque required before ordering hoses and sockets; 115V ZE pumps ship with a 15-amp plug, and Enerpac recommends a 20-amp circuit for frequent full-pressure use.
