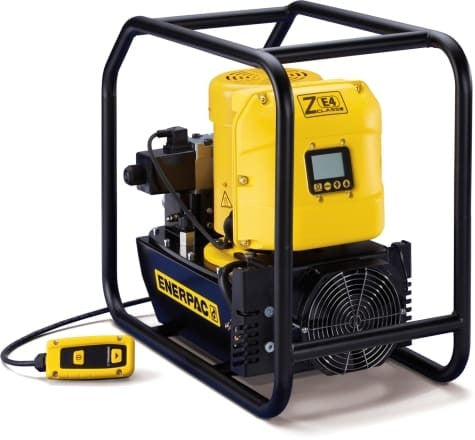

ZE4208TB-QHR Enerpac ZE4T Electric Torque Wrench Pump is the larger-reservoir 115V ZE4T configuration in this group. It retains the LCD, auto-cycle capability, heat exchanger, and roll-cage protection of the smaller ZE4204TB-QHR but provides more available oil for bolting systems that demand greater hydraulic volume.
More Oil Capacity for Repetitive Torque-Wrench Operation
The ZE4T platform is designed for controlled hydraulic bolting with a fully enclosed industrial electric motor and an electronic enclosure built for harsh work environments. The LCD gives the operator access to operating and diagnostic information, while auto-cycle mode can streamline repetitive wrench cycles.
The larger reservoir is the main selection reason to move from ZE4204TB-QHR to this model. It provides more hydraulic oil capacity for larger wrench circuits or applications where the smaller 4-liter reservoir would be limiting, without stepping up to the higher-flow ZE5T platform.
Specifications
| Pump Series | ZE4T Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 60 in³/min @ 10,000 psi |
| Reservoir Capacity | 416 in³ (8.0 L) |
| Usable Oil Capacity | 2.0 gal (8.0 L) |
| Voltage | 115V |
