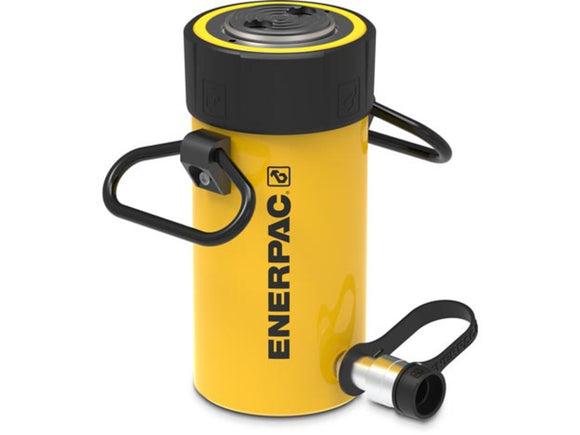

Enerpac RC506 50-Ton RC Cylinder, 6.25" Stroke - view 1

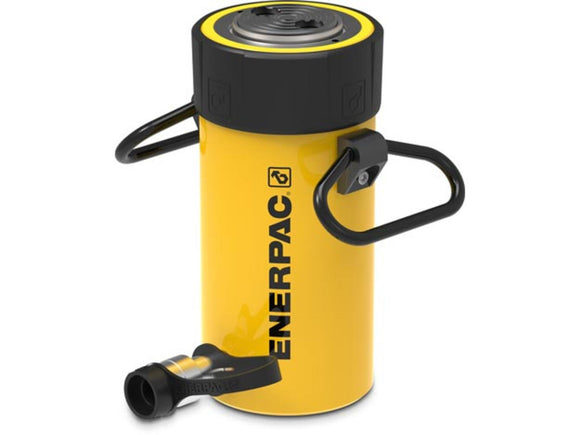

Enerpac RC506 50-Ton RC Cylinder, 6.25" Stroke - view 2

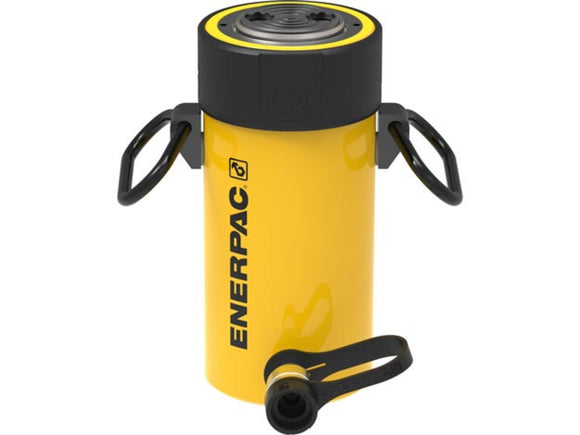

Enerpac RC506 50-Ton RC Cylinder, 6.25" Stroke - view 3

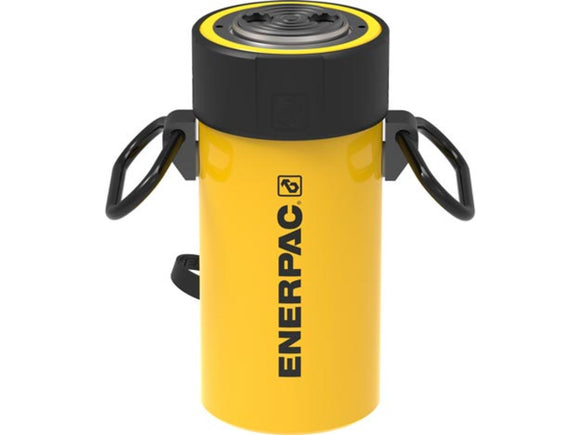

Enerpac RC506 50-Ton RC Cylinder, 6.25" Stroke - view 4

RC506 50-Ton RC Cylinder, 6.25" Stroke

$2,484.33

Shipping calculated at checkout

SKU: RC506

30 Day
Return Policy

Ships Fast
Typically 2-3 Days

Secure
Safe Shopping

Need A Special Quote on Enerpac products?
Contact Us to get your custom quote started!

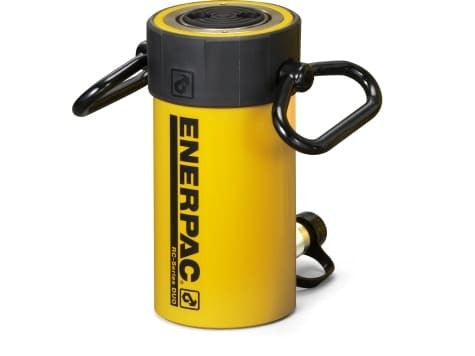

The Enerpac RC506 is a 50-ton single-acting, spring-return hydraulic cylinder with a 6.25 in stroke and an 11.13 in collapsed height. It produces up to 55.2 tons at 10,000 psi, needs 69.03 in³ of oil for a full stroke and comes with a CR400 coupler. It is the cylinder used in the Enerpac SCR506H set and the IPH5031 50-ton H-frame press.

RC506 specifications

Capacity 50 tons (55.2 tons maximum at 10,000 psi)
Stroke 6.25 in
Collapsed height 11.13 in
Extended height 17.38 in
Effective area 11.04 in²
Oil capacity 69.03 in³
Outside diameter 5.00 in
Plunger diameter 3.13 in
Saddle Hardened, removable, grooved, 2.81 in diameter
Base mounting 1/2 in-13 UNC holes on a 3.75 in bolt circle
Collar thread 5 in-12 UN
Coupler CR400 with dust cap, included
Action / return Single acting, spring return
Maximum operating pressure 10,000 psi (700 bar)
Weight 51 lb

What it works with

  • Hand pump: the P80 (134 in³) or P462 (453 in³). A P392 does not have enough oil for the full stroke.
  • Complete set: the SCR506H includes the RC506, P80 pump, HC7206 hose, GF50P gauge and GA2 gauge adaptor.
  • Hose: an HC-Series hose such as the HC7206. Its CH604 coupler mates with the CR400 on the cylinder.
  • Gauge: GF50P with a GA2 adaptor shows the load on the cylinder.
  • Press frame: the IPH5031 50-ton H-frame press is built around the RC506 and P80.

Features

  • TRIO bearing system with hardened composite wear bands for better side-load resistance
  • Strengthened TRIO stop ring
  • Pre-tensioned spring for faster retraction
  • Plunger wiper keeps dirt out of the seals
  • Collar thread, plunger thread and base mounting holes for fixturing
  • Works in any position

How many strokes to extend it?

With a P80 hand pump, the plunger moves about 1 in every 11 strokes until it meets the load, then about 74 strokes per inch under load. For frequent full-stroke work, use an electric pump; the IPE5005 press pairs the RC506 with a PUJ1200B.

Questions about the RC506

How much can the RC506 lift?

It produces 55.2 tons at 10,000 psi. Enerpac recommends using no more than 80% of the rated load and stroke, which is about 44 tons.

Which pump do I need for an RC506?

A 10,000 psi pump with more than 69 in³ of usable oil plus the hose volume. The P80 hand pump is Enerpac's standard match.

Is the RC506 single acting or double acting?

Single acting. Oil extends the plunger and an internal spring retracts it when the pump valve is opened. For powered retraction, use a double-acting RR-Series cylinder.

What coupler does the RC506 use?

It comes with a CR400 female coupler and dust cap. Any Enerpac HC-Series hose with a CH604 male coupler connects to it.

Repair kits

  • RC506K repair kit: for existing RC506 cylinders with date or product codes beginning B. Confirm the equipment identification markings and required seal type before ordering.

Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
