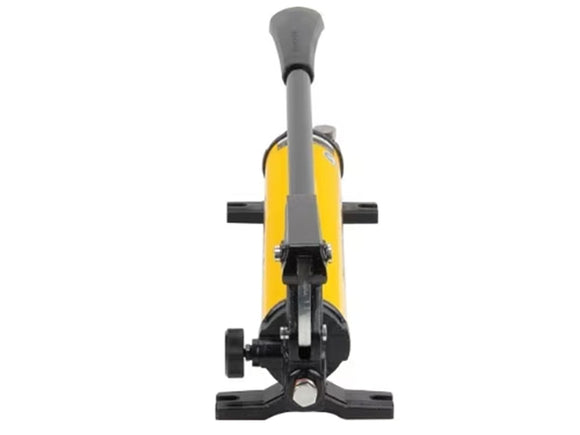

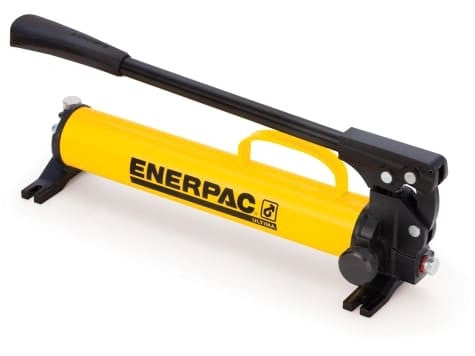

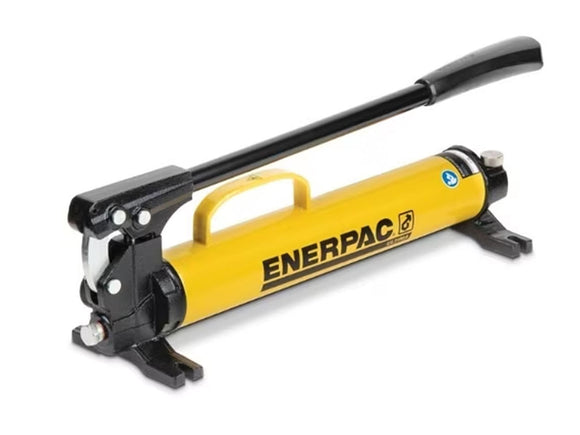

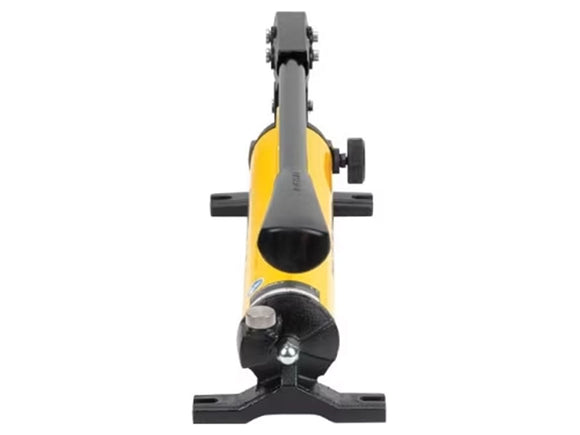

P39 Enerpac ULTIMA Steel Hand Pump is the single-speed, compact-reservoir member of the ULTIMA steel range. Its 41 in³ oil capacity and 10,000 psi rating make it a durable general-purpose choice when the simplicity of one pumping stage is preferred over the faster approach of a two-speed pump.
Traditional Steel Construction in a Compact Format
ULTIMA pumps use all-steel construction with a chromed plunger and wiper system for long industrial service. Enerpac also incorporates an oil-overfill pressure protection system and a reservoir design intended to resist leakage during handling and transport.
The P39 differs from P77 primarily in pumping strategy. Both occupy the same 41 in³ reservoir class, but P77 adds a high-volume first stage for quicker approach. P39 keeps the mechanism simpler and provides the same displacement throughout the operating cycle.
Enerpac also supports conversion of selected ULTIMA models, including P39, for foot operation with the appropriate conversion kit when hands-free pumping is useful.
Specifications
| Pump Series | P-Series ULTIMA |
|---|---|
| Power Source | Manual |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 41 in³ |
| Pump Speed | Single-Speed |
| Pump Operation | Hand Operated |
| Pump Material | Steel |
| Valve Configuration | Release Valve |
| Valve Operation | Manual |
| Cylinder Compatibility | Single-Acting |
| Gauge Included | No |
