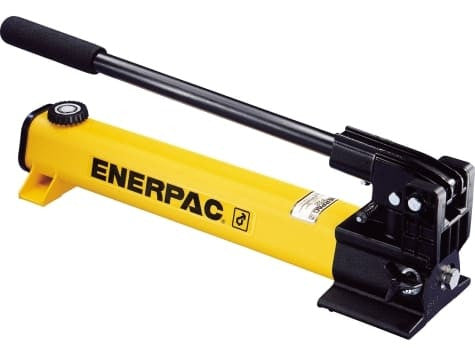

P392 Enerpac Lightweight Hand Pump is one of the most versatile mid-capacity models in the lightweight P-Series. Its 55 in³ reservoir, two-speed action and 10,000 psi capability make it suitable for a broad range of single-acting cylinders and hydraulic tools.
Faster Approach Than the P202
Although P392 and P202 carry the same usable oil capacity, P392 moves substantially more oil during its low-pressure stage. That makes P392 the better fit when reducing the time spent advancing a cylinder to the load is a priority. Once system resistance increases, it shifts automatically to the lower-displacement high-pressure stage.
The reservoir is glass-filled nylon and the aluminum pump base is nylon encapsulated for corrosion resistance. A fiberglass handle keeps the package light and non-conductive, while a handle lock aids transport and storage.
P392 is configured for single-acting equipment. If double-acting control is needed, move to a pump with an integrated four-way valve such as P842; for more corrosion-resistant metal construction, compare P392AL or P392ALSS.
Specifications
| Pump Series | P-Series Lightweight |
|---|---|
| Power Source | Manual |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 55 in³ |
| Pump Speed | Two-Speed |
| Pump Operation | Hand Operated |
| Pump Material | Composite / Aluminum |
| Valve Configuration | Release Valve |
| Valve Operation | Manual |
| Cylinder Compatibility | Single-Acting |
| Gauge Included | No |
